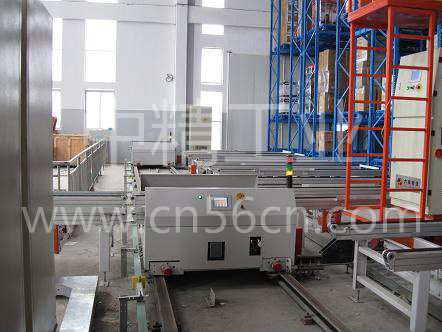

Orbital Shuttle
The shuttle pallet trolley car is a track composed by two parts of a running body and a chain or roller conveyor, shuttle car into a monorail shuttle cars and two-track shuttle car.
Features
1, modular design components, easy-to-assemble;
2, shuttle car at both ends of a buffer device, the orbit both ends with mechanical dead block;
Product specifications and technical parameters
|
Technical parameters |
Data content |
|
Cell size |
1200×1000×H |
|
Rated load |
250-4000Kg |
|
Running speed |
0-180m/min（Frequency control） |
|
Drive power |
1.1-3KW |
|
Speed control |
Closed-loop speed control, real-time network control |
|
Means of communication |
Wireless Ethernet, far-infrared optical communication, slip-line communication |
|
To identify the site location |
Laser barcode tape encoder |
|
Control mode |
PLC control / centralized control |
|
Power supply |
380V 50Hz |
